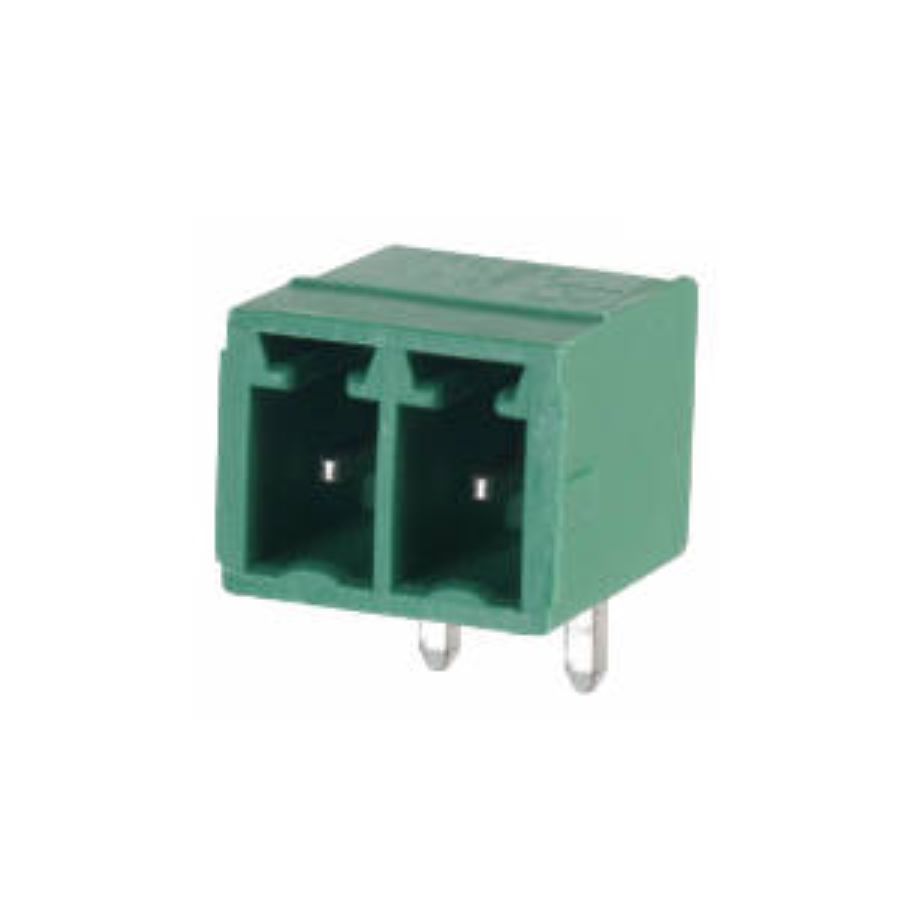

1803277
Manufacturer:
Phoenix Contact
Mfr.Part #:
1803277
Datasheet:
Description:
Terminal Blocks Through Hole 2 3.81 mm 8 A 160 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 640 mV |
| Tolerance | 5 % |
| Length | 9.01 mm |
| Width | 9.2 mm |
| Termination | Solder |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Voltage Rating (AC) | 160 V |
| Resistance | 10 kΩ |
| Power Rating | 248 mW |
| Height | 10.65 mm |
| Packaging | Reel |
| Voltage Rating | 160 V |
| Depth | 9.2 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 3.81 mm |
| Voltage | 300 V |
| REACH SVHC | No SVHC |
| Weight | 113.398093 g |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Tin |
| Pitch | 3.81 mm |
| Current | 8 A |
| Current Rating | 8 A |
| Max Current Rating | 8 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Orientation | Right Angle |
| Color | Green |
| Gender | Male |
| Number of Contacts | 2 |
| Number of Poles | 2 |
| Connector Type | Plug |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Polybutylene |
| Number of Positions Per Level | 2 |
| Number of Levels | 1 |
| Housing Color | Green |
| Connection Method | Plug |
| Current Rating (IEC) | 8 A |
| Voltage Rating (IEC) | 160 V |
Stock: 777
Distributors
pcbx
pcbxUnit Price$0.44342
Ext.Price$0.44342
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.44342 | $0.44342 |
| 10 | $0.34502 | $3.45020 |
| 25 | $0.31711 | $7.92775 |
| 50 | $0.29146 | $14.57300 |
| 100 | $0.26788 | $26.78800 |
| 300 | $0.24621 | $73.86300 |
| 500 | $0.22630 | $113.15000 |
| 1000 | $0.21262 | $212.62000 |
